Yamaha 150 175 200 225 250 300 HP 2 Stroke HPDI Fuse Box Assembly 68F-82170-01-00

Condition: Used
Manufacturer: Yamaha
Part number: 68F-82170-01-00

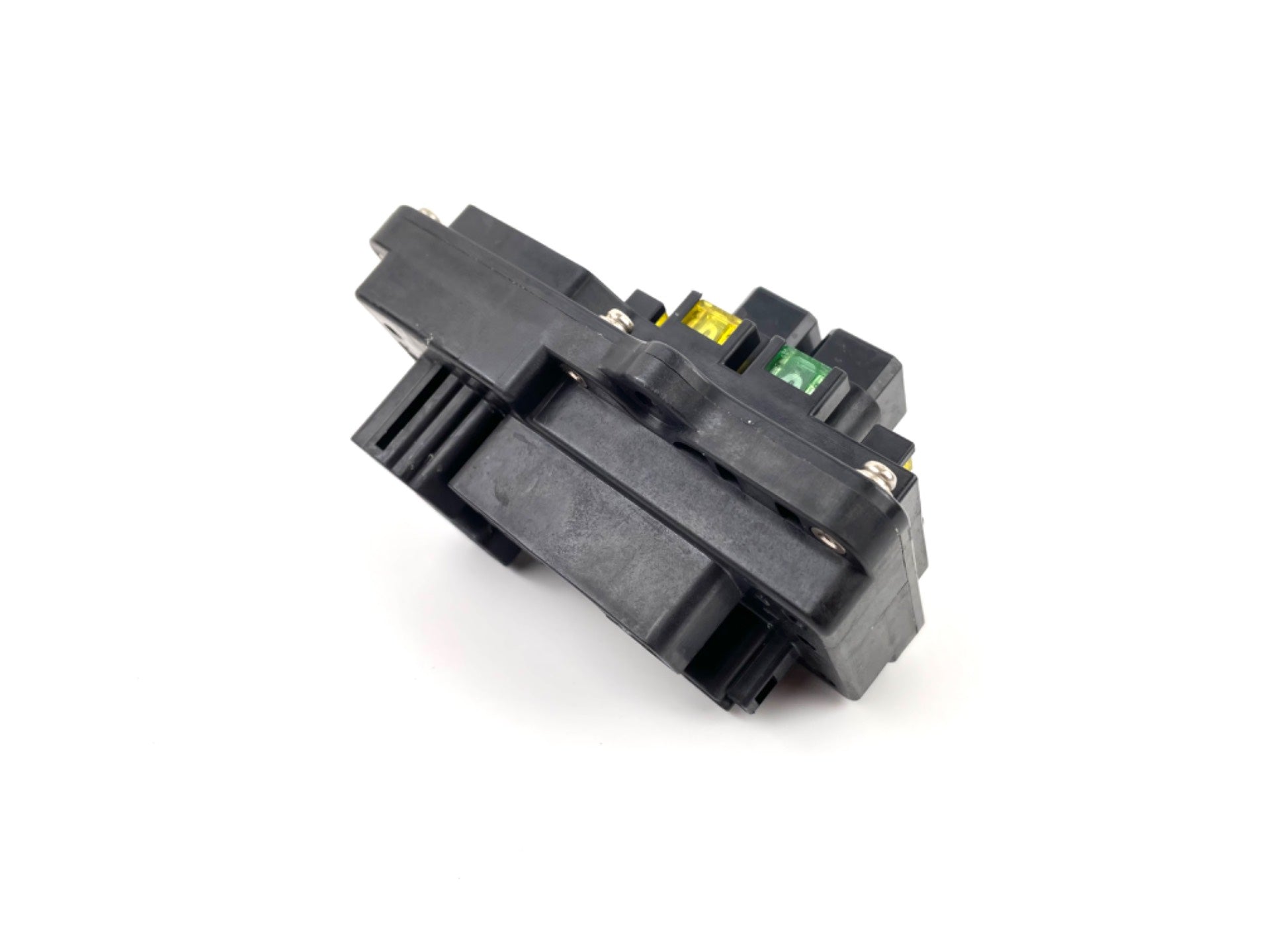

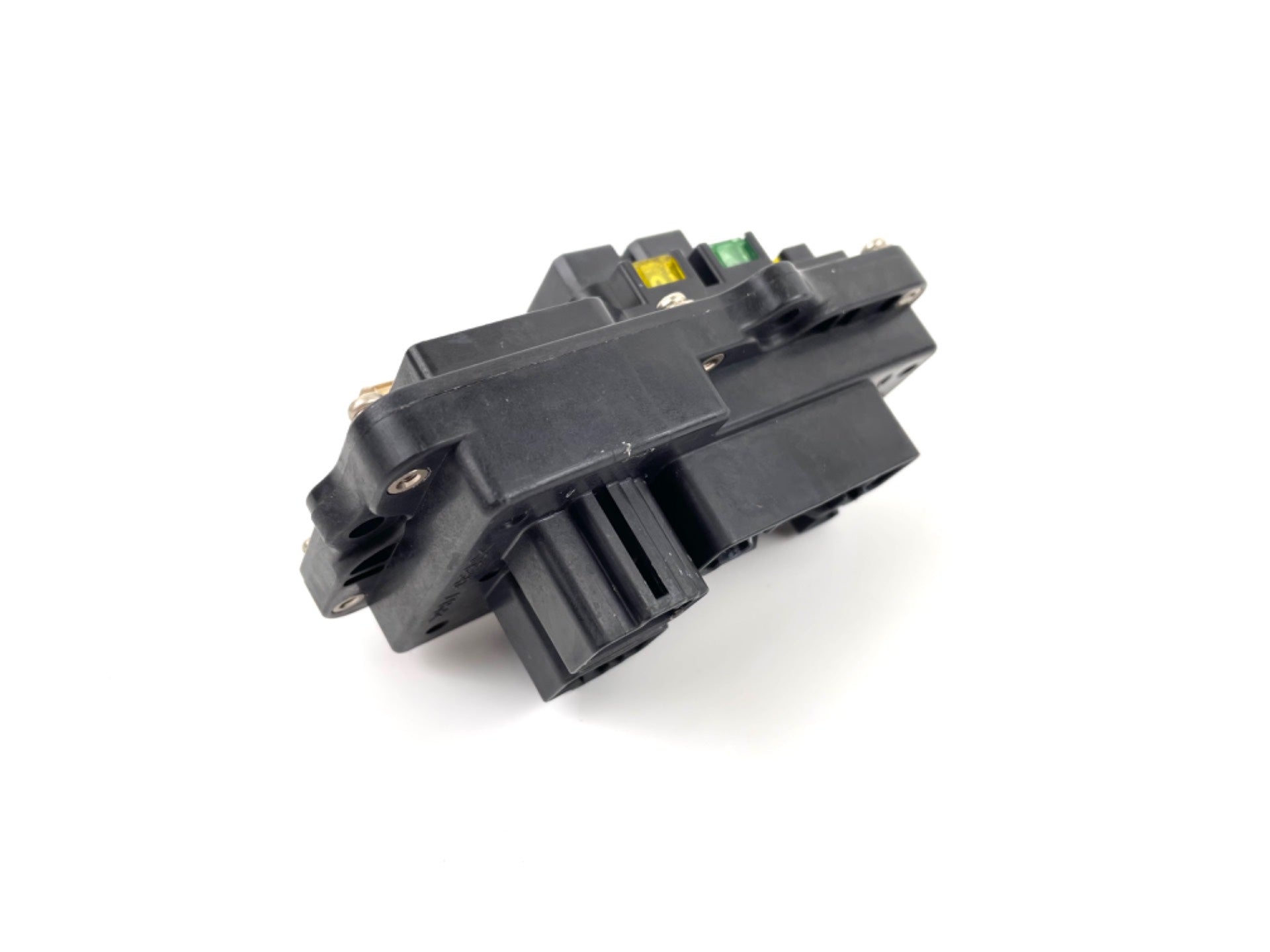

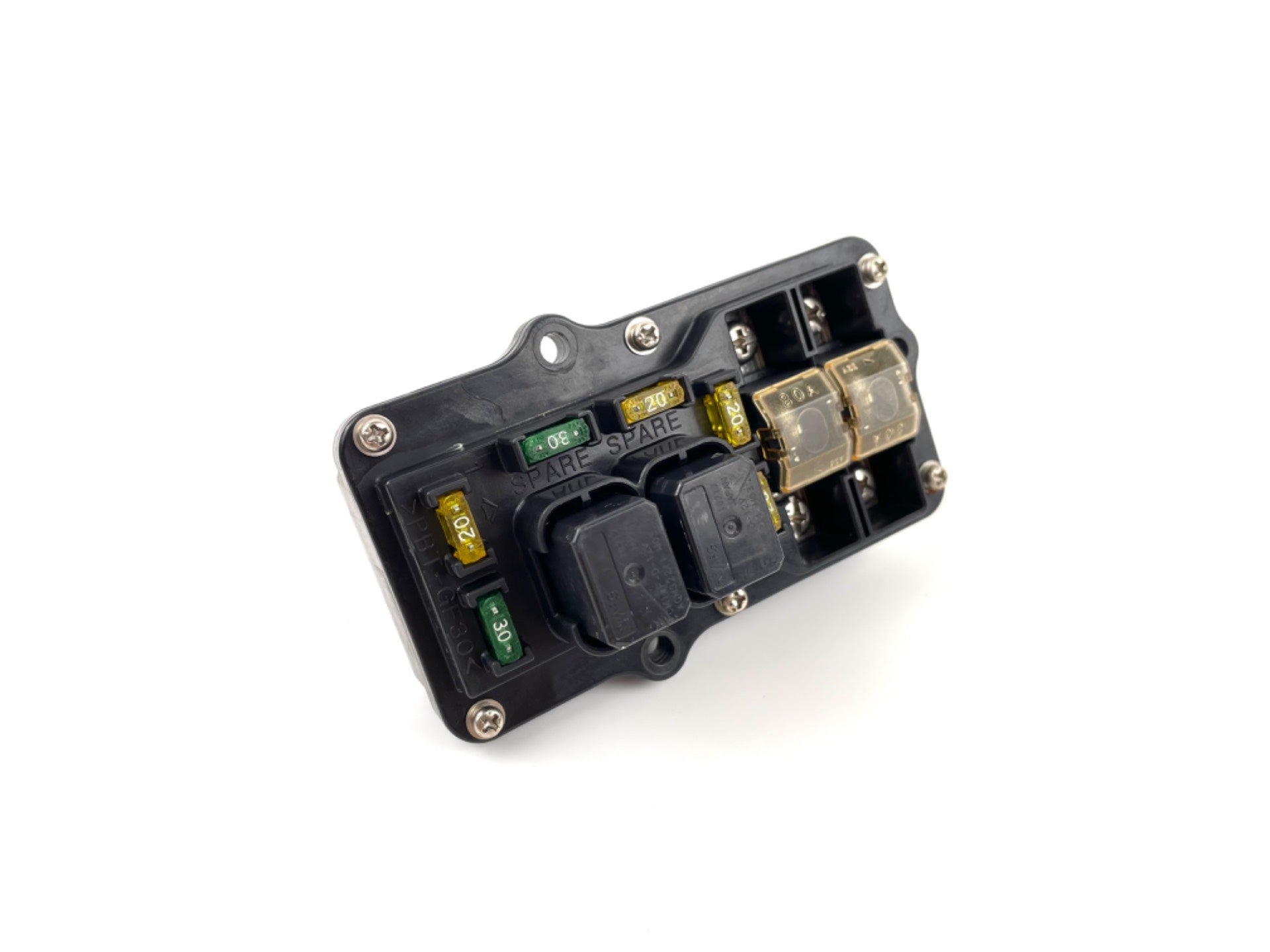

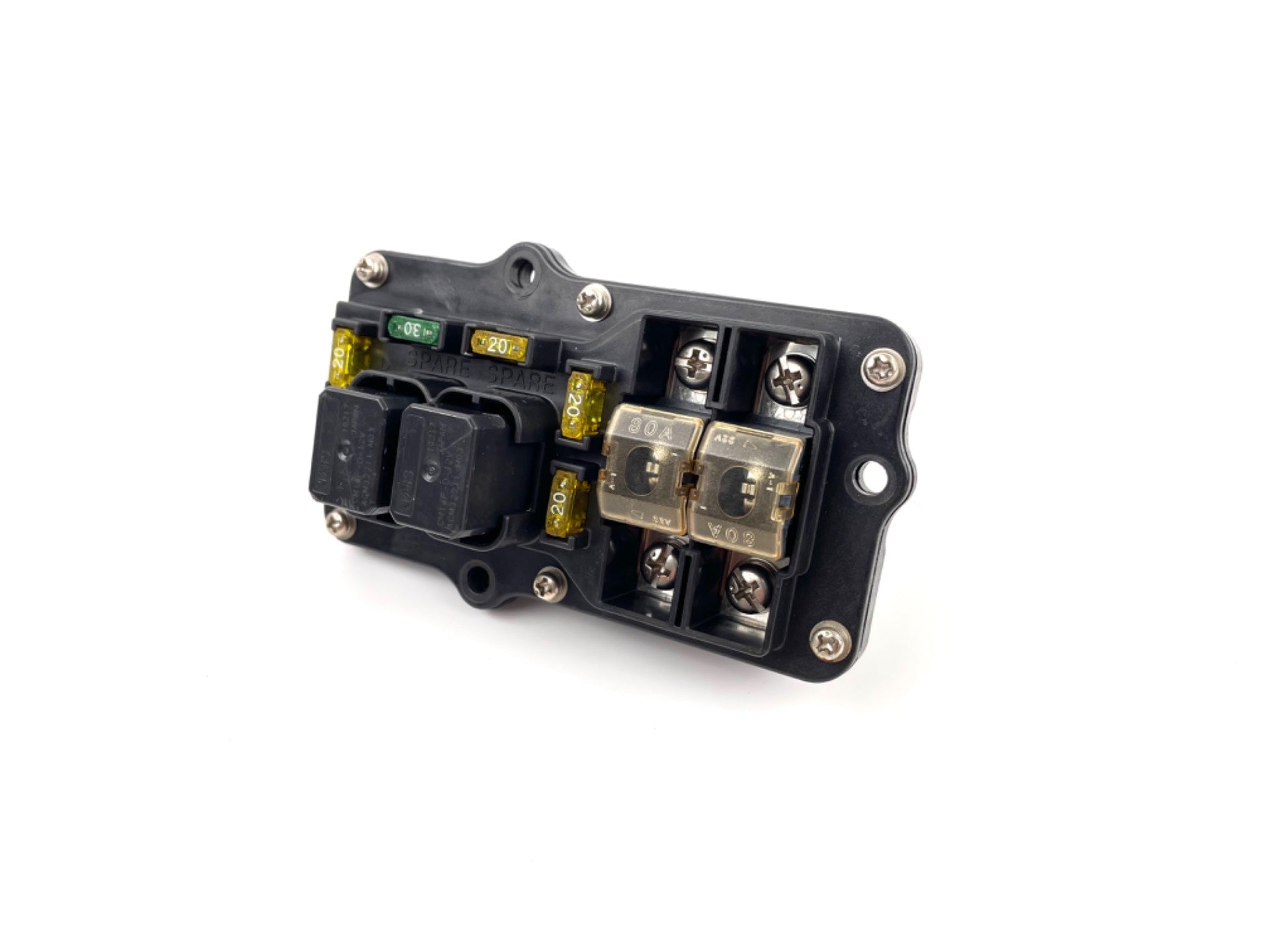

Used Yamaha fuse box, part number 68F-82170-01-00, for select Yamaha outboards.

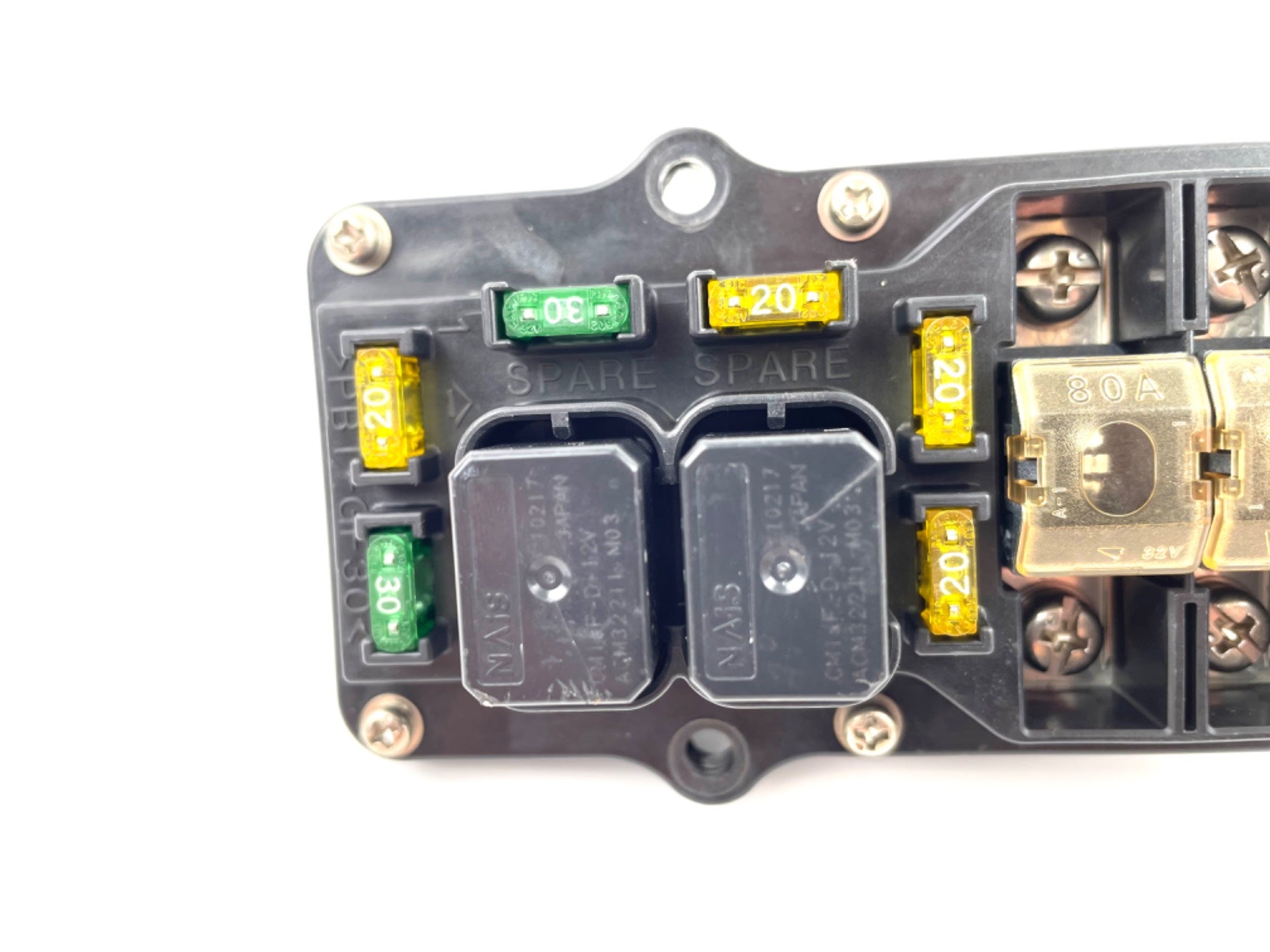

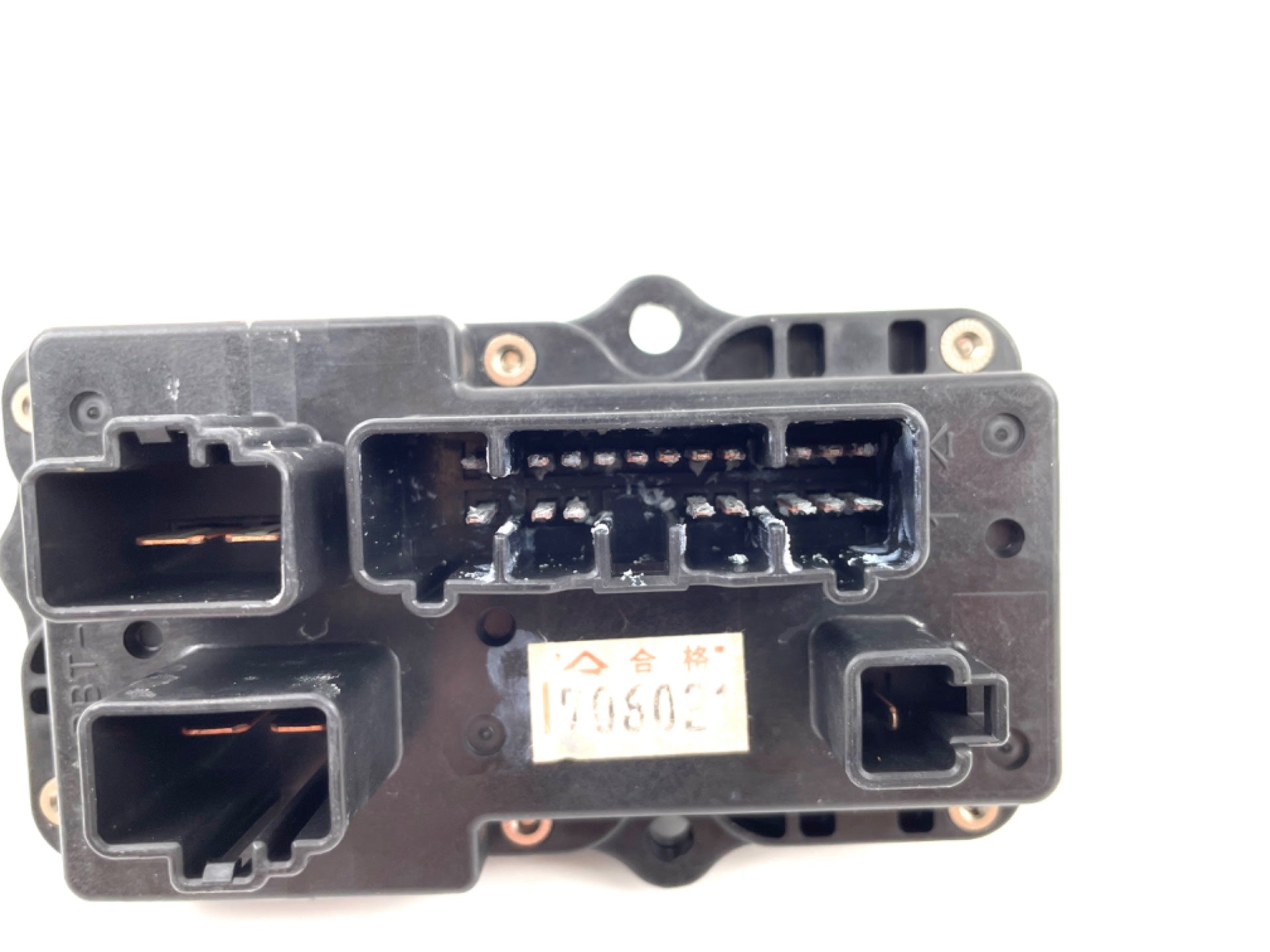

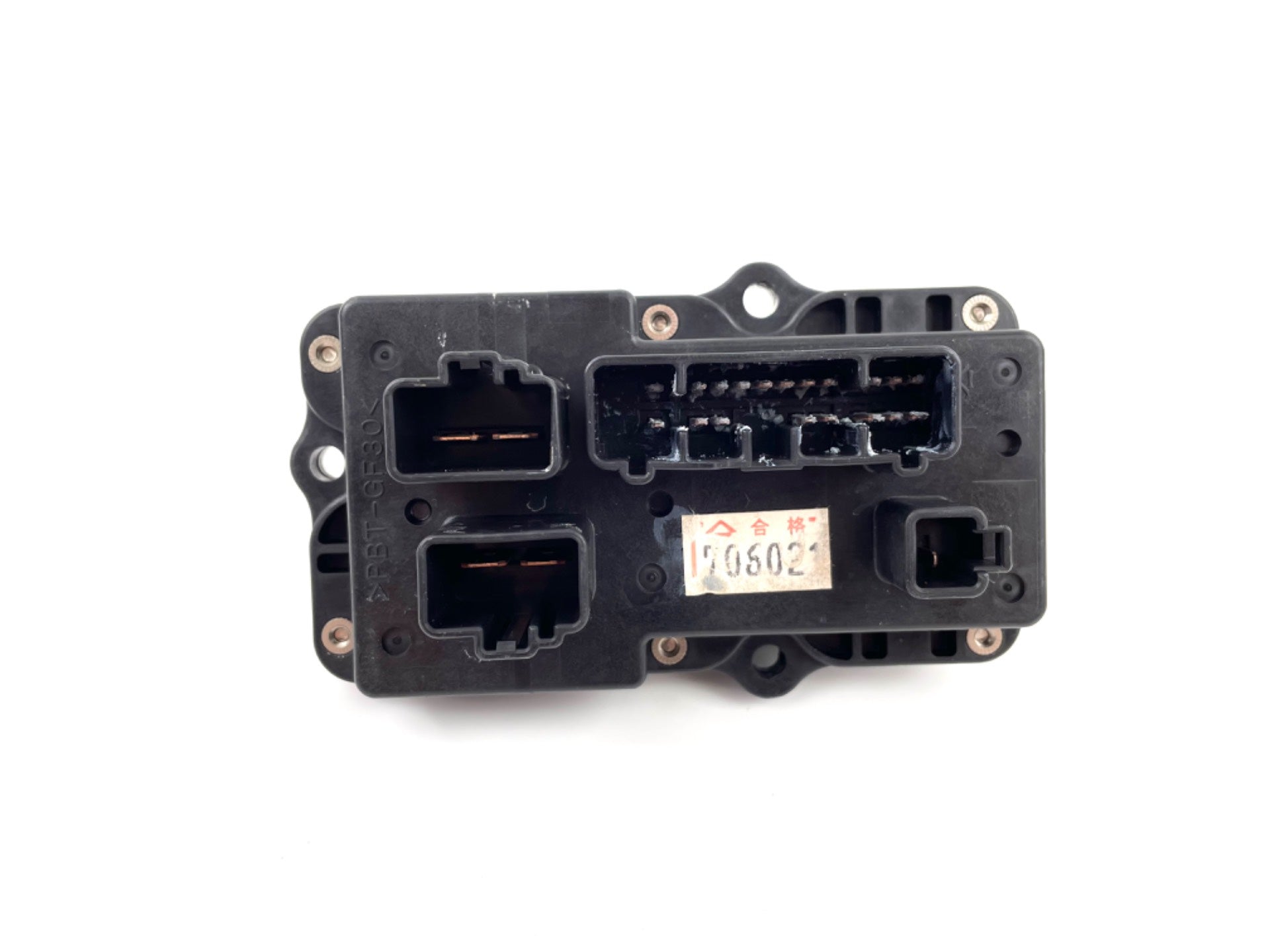

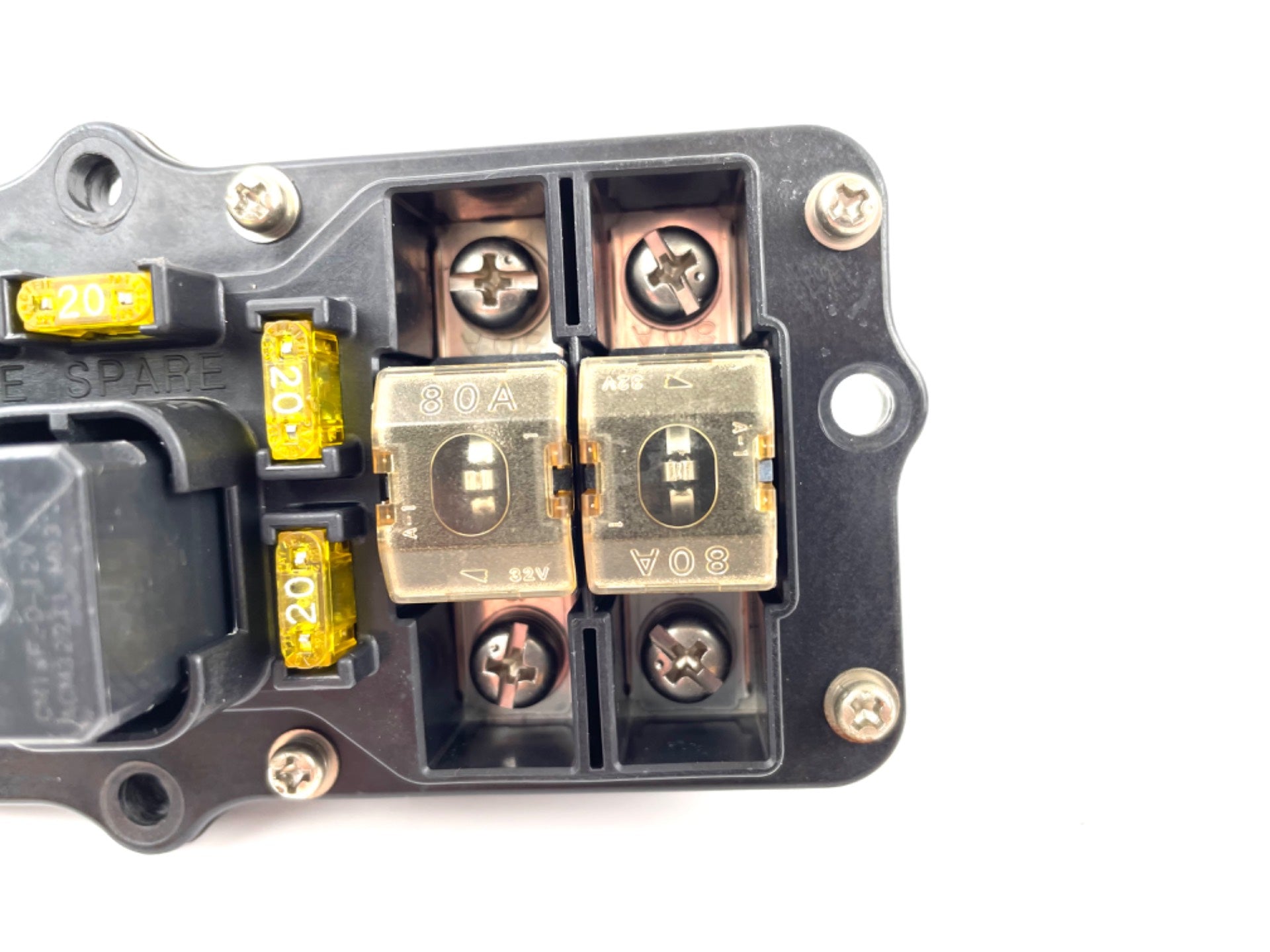

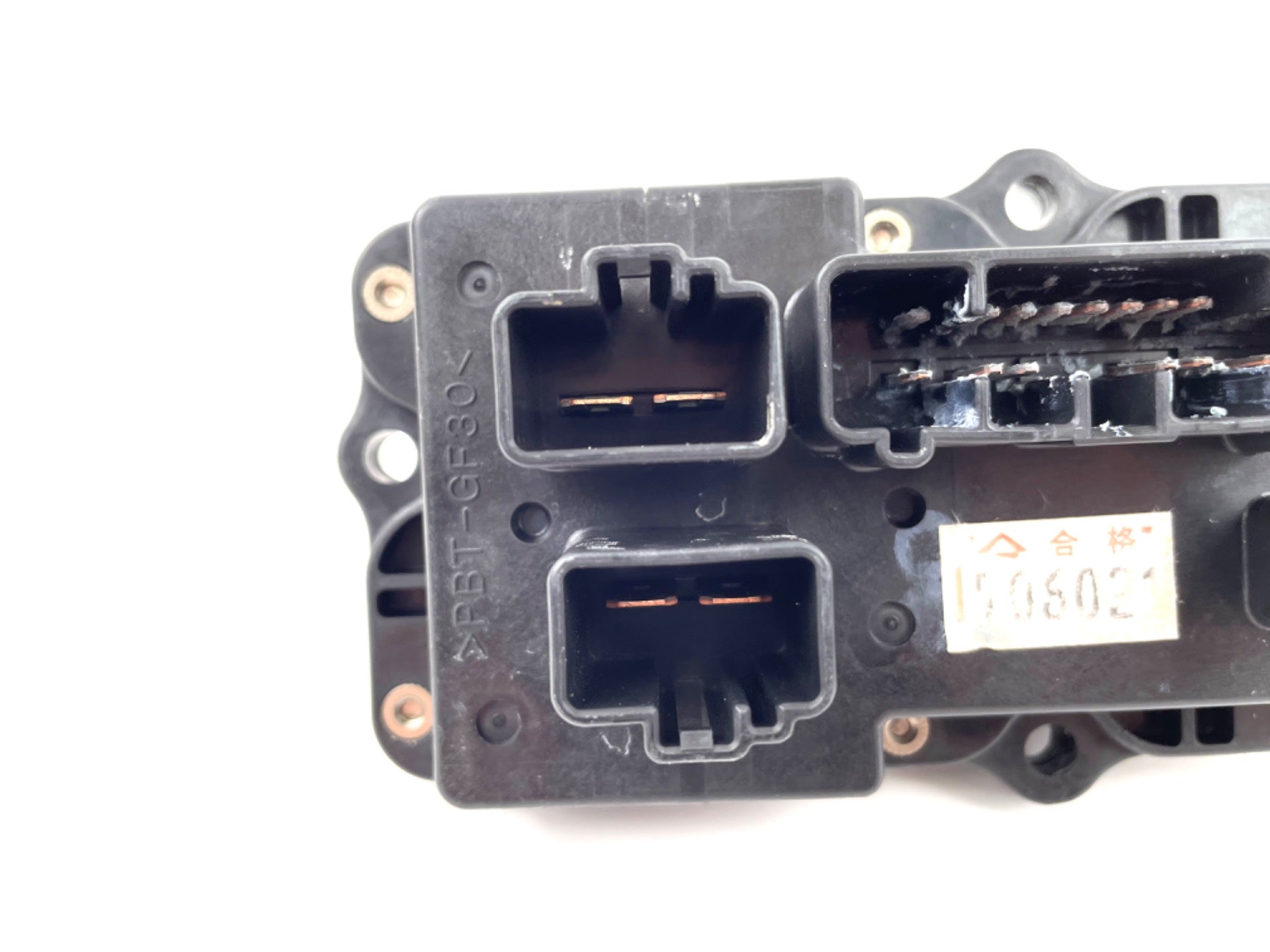

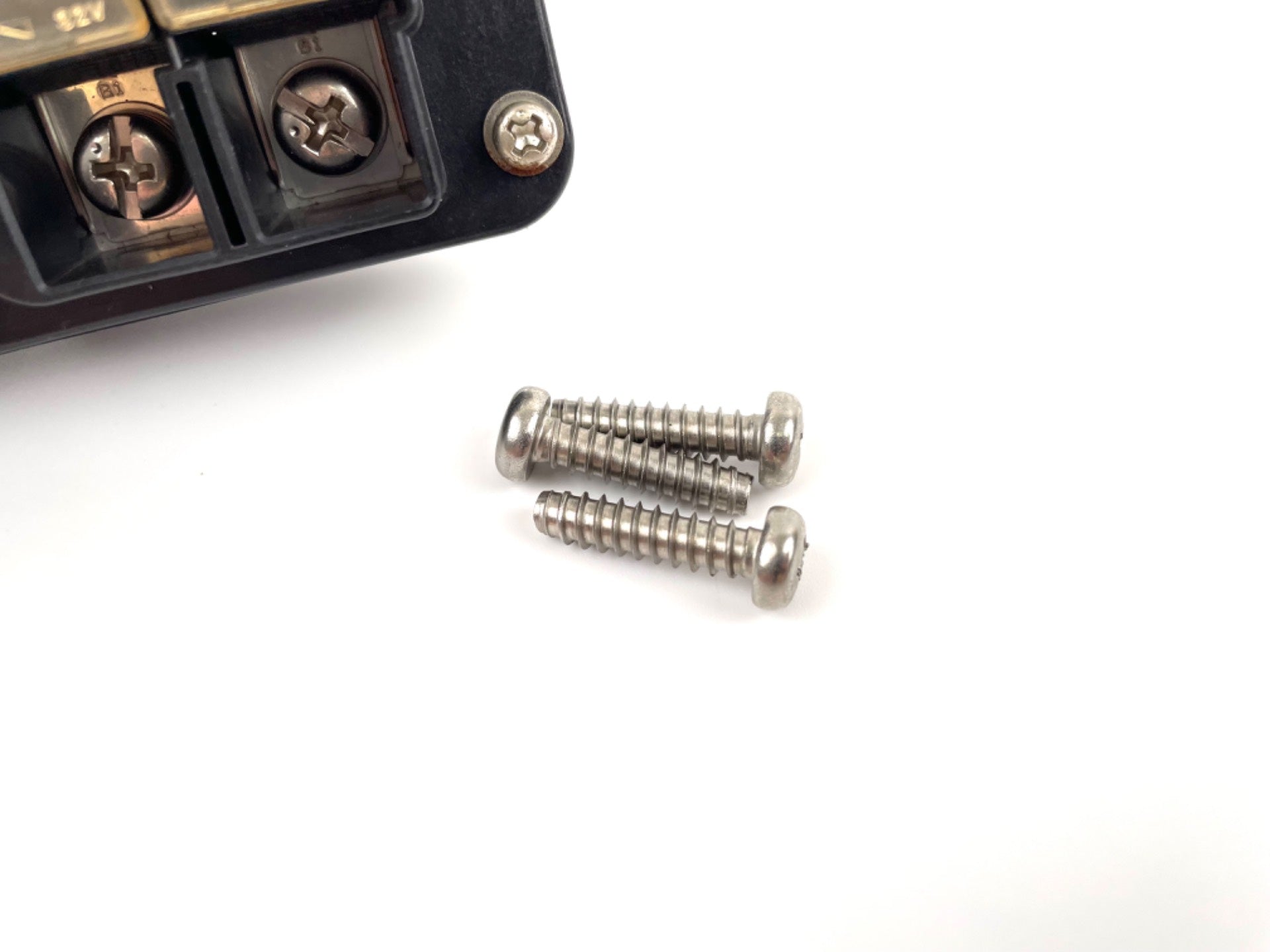

Compare the part number, connector layout and fuse arrangement with your original assembly. Check the photos for included fuses, cover and wiring.

Check this item’s photos and condition notes for visible wear, corrosion, damage, included parts and any recorded test results. If something is unclear, contact us before ordering.

Fits these US Yamaha outboards:

Family year ranges are shown; individual model years vary. Match your full model, serial number and installed equipment before ordering.

• VZ150 (2000–2014): VZ150TLR, VZ150TLRA, VZ150TLRB, VZ150TLRC, VZ150TLRD, VZ150TLRY, VZ150TLRZ; 2000 VZ150TLRY requires catalog code 68J.
• Z150/LZ150 (2000–2005): LZ150TXR, LZ150TXRA, LZ150TXRB, LZ150TXRC, LZ150TXRD, LZ150TXRY, LZ150TXRZ, Z150TLRA, Z150TLRB, Z150TLRY, Z150TLRZ, Z150TXR, Z150TXRA, Z150TXRB, Z150TXRC, Z150TXRD, Z150TXRY, Z150TXRZ.
• VZ175 (2001–2012): VZ175TLR, VZ175TLRA, VZ175TLRB, VZ175TLRC, VZ175TLRD, VZ175TLRZ.
• Z175 (2001–2005): Z175TXR, Z175TXRA, Z175TXRB, Z175TXRC, Z175TXRD, Z175TXRZ.
• VZ200 (2001–2004, 2009): VZ200RTLR (2009), VZ200TLRA, VZ200TLRB, VZ200TLRC, VZ200TLRZ.
• Z200/LZ200 (2000–2012): LZ200TXR, LZ200TXRA, LZ200TXRB, LZ200TXRC, LZ200TXRD, LZ200TXRY, LZ200TXRZ, Z200TLR, Z200TLRD, Z200TLRY, Z200TLRZ, Z200TXR, Z200TXRA, Z200TXRB, Z200TXRC, Z200TXRD, Z200TXRY, Z200TXRZ.
• VZ225 (2009): VZ225HTLR.
• VZ250 (2009): VZ250FTLR.
• VZ300 (2009): VZ300BTLR.

Replaces part numbers: 68F-82170-00-00. Newer service replacements: 68F-82170-02-00, 68F-82170-03-00.
